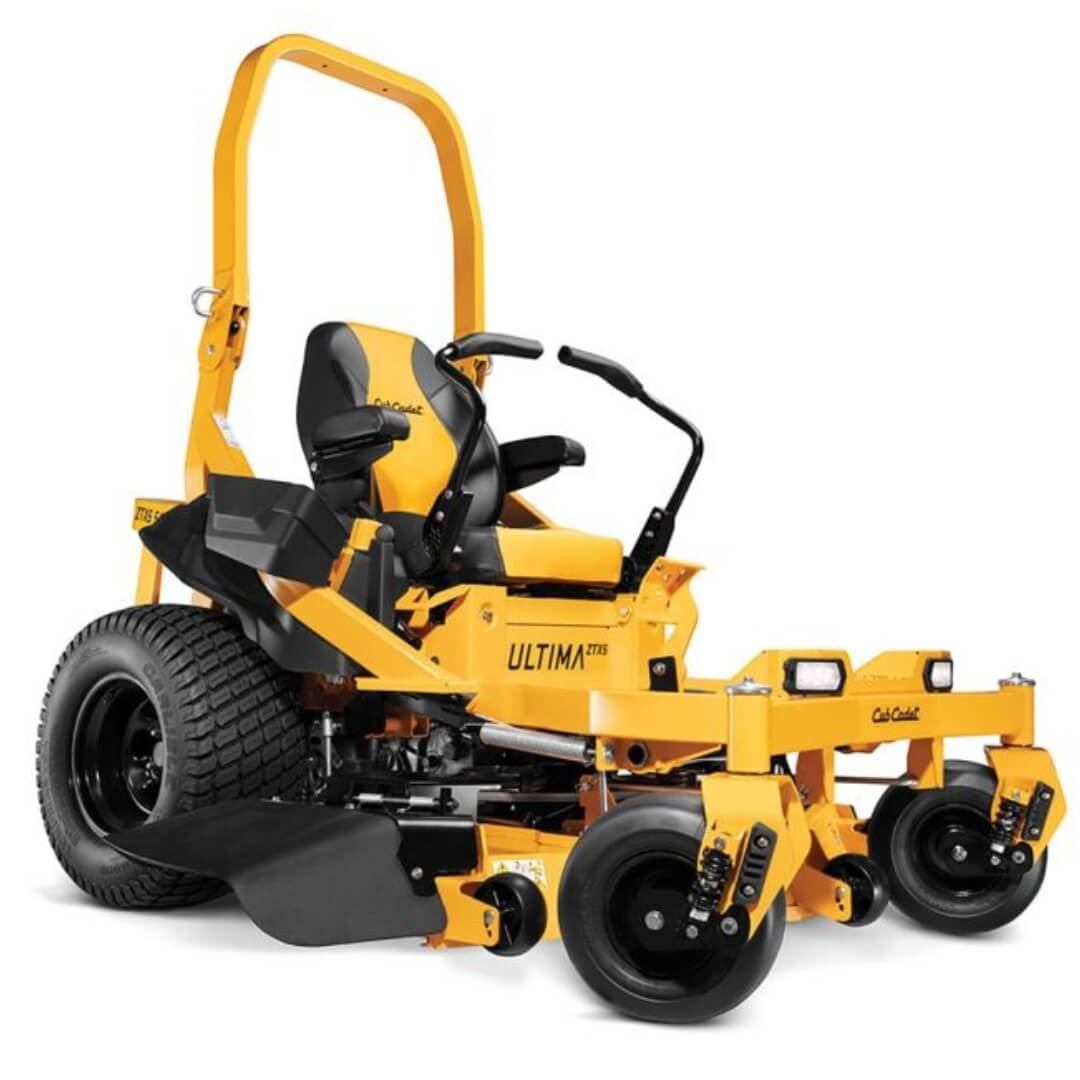

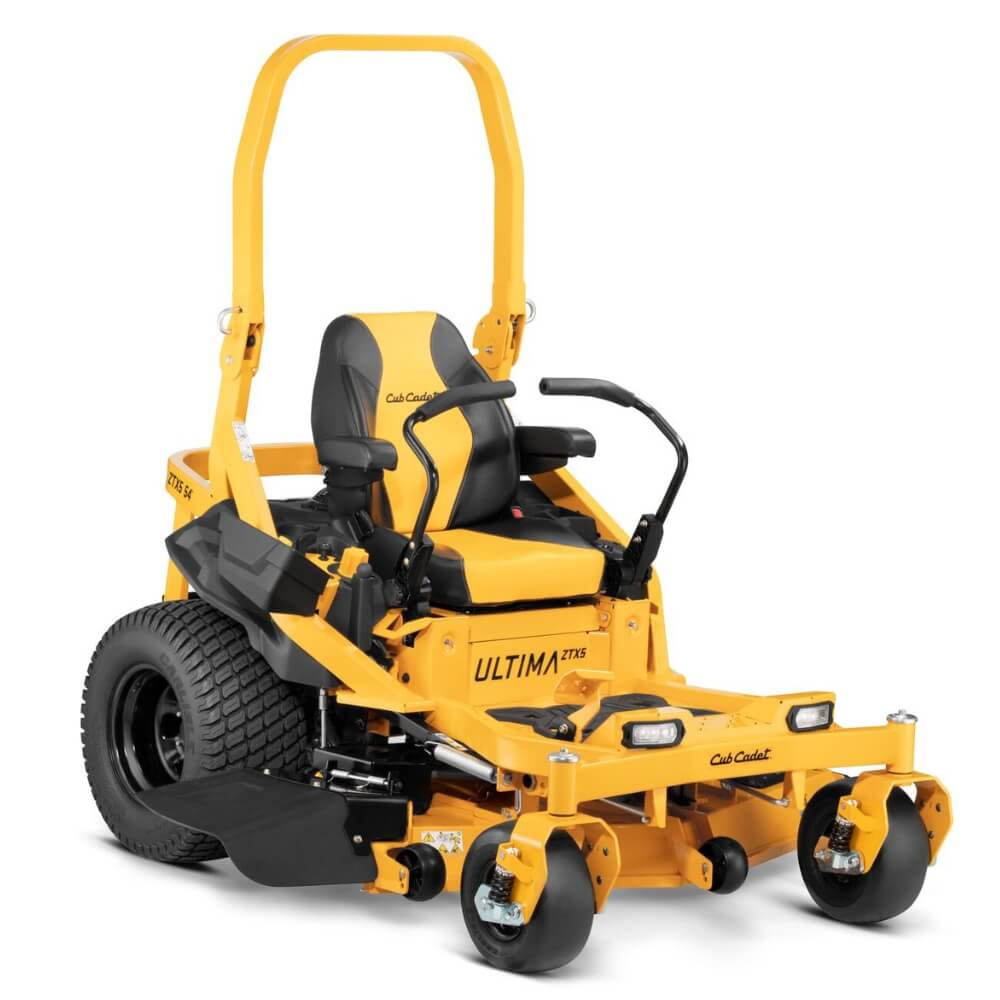

Cub Cadet ZTX5 54

Engineered for serious acreage, the Cub Cadet Ultima ZTX5 54 combines heavy-duty construction with industry-leading comfort and precision. Its AeroForce Max™ 54" fabricated steel deck ensures a clean, consistent cut, while the 24HP Kawasaki V-Twin engine offers reliable power in demanding conditions. Dual Hydro-Gear ZT3200 transmissions provide smooth, responsive control and zero-turn maneuverability, achieving ground speeds up to 13 km/h for impressive productivity.

Built around a rigid 4cm x 8cm tubular steel frame, the ZTX5 54 excels on challenging terrain and supports long hours of operation. Operator comfort is prioritized through a 51cm high-back seat, padded armrests, suspension isolators, over-molded lap bars, and intuitive deck height adjustments. With a foldable ROPS for protection, LED lighting, and compatibility with accessories such as a mulching kit or bagger, this mower is designed to meet both residential acreage and light commercial demands.

Maintenance is simplified through the open rear frame design, easy belt access, and a large 20.8L fuel tank that keeps you working longer with fewer interruptions. Supported nationwide and backed by generous warranties, the ZTX5 54 offers proven reliability and long-term value.

Professional Cutting Performance

The 54" AeroForce Max™ fabricated deck uses 10-gauge steel with reinforced 2-gauge support and 7-gauge side wraps for exceptional strength and a premium finish.

Powerful Kawasaki Engine

The 24HP Kawasaki V-Twin engine provides smooth, dependable power suited to demanding mowing conditions across large properties.

Zero-Turn Mobility

Dual Hydro-Gear ZT3200 transmissions deliver responsive steering and high forward speeds up to 13 km/h, maximizing mowing efficiency.

Comfort-Focused Design

Features a 51cm high-back seat with armrests, suspension isolators, rubber footrests, and ergonomic lap bars for reduced fatigue during long sessions.

Built for Durability and Safety

A rigid tubular frame, fabricated deck, foldable ROPS, and Operator Presence Control ensure long-term reliability and safe operation on slopes up to 15 degrees.

Versatile and Accessory-Ready

Compatible with mulching kits, baggers, tow-behind tools, and equipped with LED headlights for extended working hours.

Country of Manufacture: United States
Block Size: Up to 12 Acres

Engine & Drive System

• Engine: 24HP Kawasaki V-Twin
• Transmission: Dual EZT 3200 Hydrostatic
• Starting: Key Start
• Fuel Tank: 20.8L Centre Mounted
• Max Drive Speed: 13 km/h
• Max Reverse Speed: 5 km/h
• Max Slope Capability: 15 Degrees

Cutting System

• Cutting Width: 54"
• Deck Construction: Fabricated Steel
• Deck Thickness: 10-gauge with 2-gauge reinforcement & 7-gauge side wraps
• Cutting Height Range: 25–120mm
• Height Adjustment: 16 Positions
• Blades: 3 (Part #742P05533)
• Blade Engagement: Electric PTO
• Anti-Scalp Wheels: Yes

Comfort & Features

• Seat: Premium high-back adjustable with padded armrests & suspension
• Turning Circle: Zero Turn
• Tow Hitch: Yes
• Reverse Mowing: Yes
• Safety: Operator Presence Control
• Roll-Over Protection: Foldable ROPS
• Accessories: Mulch plug & grass catcher (optional)

Tyres

• Front: 13 x 6.5"
• Rear: 23 x 12" Turf Master

Dimensions & Weight

• Length: 215cm
• Width (Chute Up): 143cm
• Weight: 380kg

Warranty

• Deck Shell: 5 Years
• Unit: 3 Years Domestic / 1 Year Commercial
• Engine: 3 Years Domestic / 2 Years Commercial
