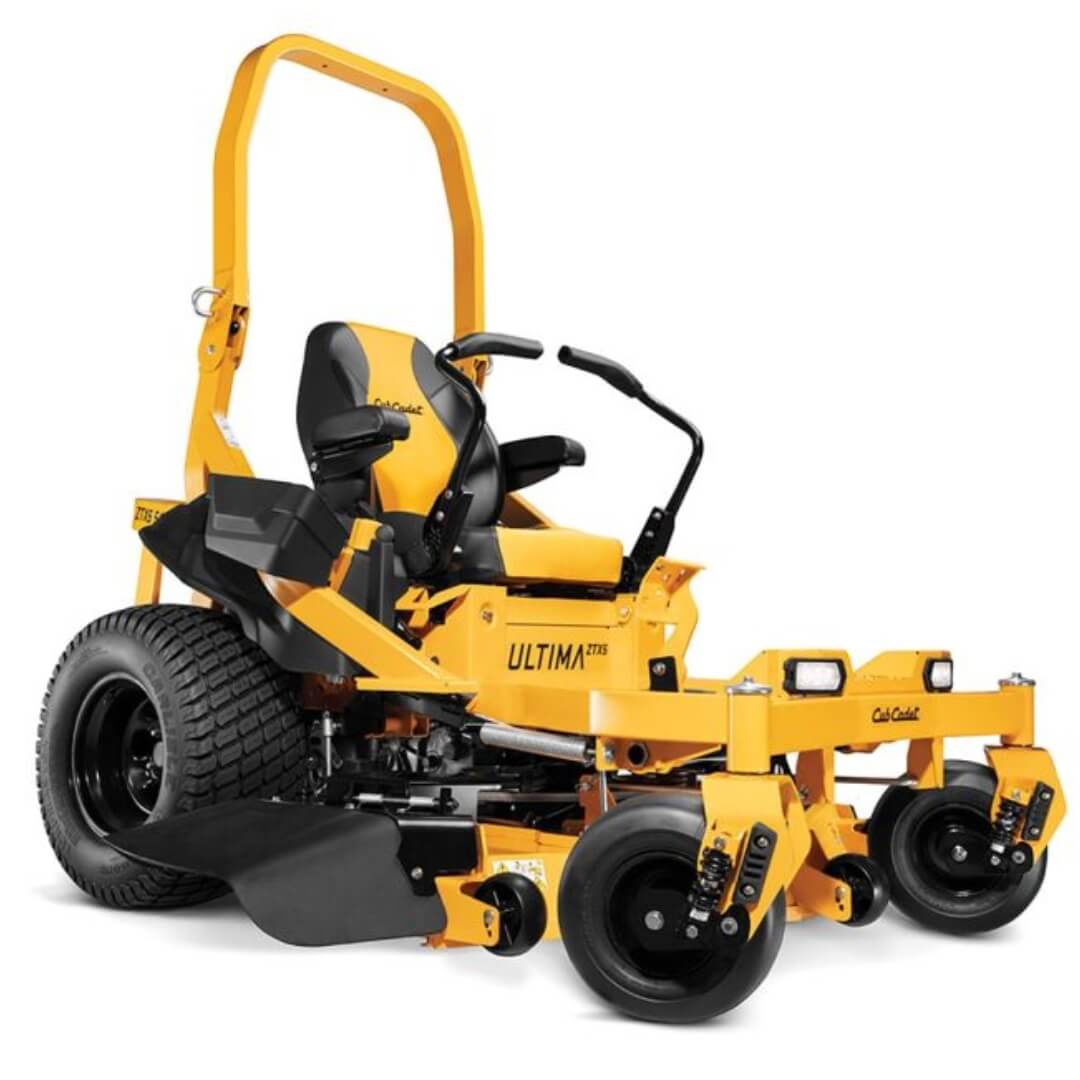

Cub Cadet ZTX5 60

The Cub Cadet Ultima ZTX5 60 sets a new benchmark in zero-turn mower performance. Designed for owners of large acreage and professional operators, this machine blends Cub Cadet’s advanced engineering with premium comfort and durability.

At its core is a 24HP Kawasaki FR730V V-Twin engine, delivering smooth, reliable power for demanding conditions. The dual Hydro-Gear ZT-3200 transmissions ensure responsive control and consistent performance, whether you’re mowing open land or manoeuvring around obstacles.

The standout feature is its 60-inch Aeroforce fabricated deck, engineered using 10-gauge steel with 2-gauge reinforcement and 7-gauge side wraps for exceptional strength. This deck delivers a superior cutting finish across all grass types.

Designed for comfort, the ZTX5 60 features a premium high-back suspension seat with cushioned armrests, over-moulded comfort lap bars, a rubber footrest, and an ergonomic operator layout—ensuring smooth operation during long sessions.

With a ROPS (Roll Over Protection System), zero-turn precision, and easy maintenance access, the ZTX5 60 is built to perform season after season.

• Powerful Kawasaki V-Twin Performance
  24HP FR730V engine delivers reliable starting, smooth operation, and the strength needed for large-scale mowing.


• Commercial-Grade 60" Aeroforce Deck
  A fabricated 10-gauge steel deck reinforced with 2-gauge steel and 7 gauge side wraps ensures durability and a superior cutting finish.


• Dual Hydro-Gear ZT-3200 Transmissions
  Responsive, durable hydrostatic drives allow forward speeds up to 13 km/h and reverse speeds up to 6 km/h with professional precision.


• Premium Comfort System
  Suspension seat, adjustable armrests, comfort lap bars, and ergonomic design reduce fatigue during extended mowing.


• Built Tough for Demanding Terrain
  ROPS, rugged steel frame, anti-scalp wheels, and zero-turn control make the ZTX5 ideal for properties with rolling hills and obstacles.


• Low Maintenance, Easy Access
  Open rear design allows quick access to belts and components, while the simple dial-adjusted deck height system delivers convenience during operation.

Country of Manufacture: United States
Block Size: Up to 12 Acres
Engine: 24HP Kawasaki V-Twin
Transmission: Dual Hydro-Gear ZT-3200
Cutting Width: 60 Inches (152 cm)
Deck Construction: Fabricated Steel
Deck Thickness: 10-gauge with 2-gauge reinforcement & 7-gauge side wraps
Cutting Height Adjustment: 16 Positions
Cutting Height Range: 25mm – 120mm
Deck Wash: No
Anti-Scalp Wheels: Yes
Cruise Control: No
Blade Engagement: Electric PTO
Blades: 3 (Part #742P05516)
Seat: Premium high-back suspension seat with cushioned armrests
Turning Circle: Zero turn
Starting: Key Start
Tow Hitch: Yes
Reverse Mowing: Yes
Grass Catcher: Optional
Mulch Plug: Optional
Safety: Operator Presence Control
Front Tyres: 13 x 6.5 Inch
Rear Tyres: 23 x 12 Inch Turf Master
Fuel Tank: 20.8 L – Centre Mounted
Roll Over Protection: Yes
Maximum Forward Speed: 13 km/h
Maximum Reverse Speed: 6 km/h
Maximum Slope Capability: 15 Degrees
Product Length: 215 cm
Product Width (Chute Up): 159 cm
Product Weight: 395 kg
Warranty – Engine: 3 Year Domestic / 2 Year Commercial
Warranty – Unit: 3 Year Domestic / 2 Year Commercial
