Cub Cadet ZTXS5 60

The Ultima ZTXS5 60 is the ultimate solution for serious acreage maintenance, combining commercial-grade durability with industry-leading steering innovation. At its core is Cub Cadet’s Synchro-Steer™ technology, delivering true four-wheel control through a familiar steering wheel. This system delivers zero-turn precision with enhanced stability, making it ideal for navigating slopes, obstacles, and complex landscaping where traditional lap-bar zero turns struggle.

Powered by a 25.5HP Kawasaki FX801V engine and supported by Hydro Gear ZT-3200 transmissions, the ZTXS5 60 provides exceptional cutting power, fast ground speeds, and reliable performance under heavy workloads. The huge 60-inch fabricated steel deck offers outstanding productivity across expansive properties, reducing mowing time significantly while maintaining professional-grade cut quality. With 16 adjustable cutting heights, three high-performance blades, and durable anti-scalp wheels, the deck is designed to handle everything from manicured turf to tough acreage grass.

Built for operator comfort during long mowing sessions, the ZTXS5 60 includes a premium high-back seat with cushioned armrests, smooth steering wheel control, and reduced vibration for all-day ease. Its rollover protection system, slope capability up to 20 degrees, and superior traction tyres provide confidence on challenging terrain.

Designed for properties up to 12 acres and light commercial use, the ZTXS5 60 offers exceptional reliability, advanced control, and incredible efficiency — backed by trusted Cub Cadet warranty coverage.

• Synchro-Steer™ Four-Wheel Control
  This advanced steering system delivers true zero-turn agility with the stability of a steering wheel, offering precise manoeuvrability and confident control on slopes and around obstacles.


• Commercial-Grade Kawasaki Power
  The 25.5HP Kawasaki FX801V engine provides relentless cutting performance, rapid acceleration, and exceptional durability for demanding acreage and light commercial use.


• Massive 60-Inch Fabricated Cutting Deck

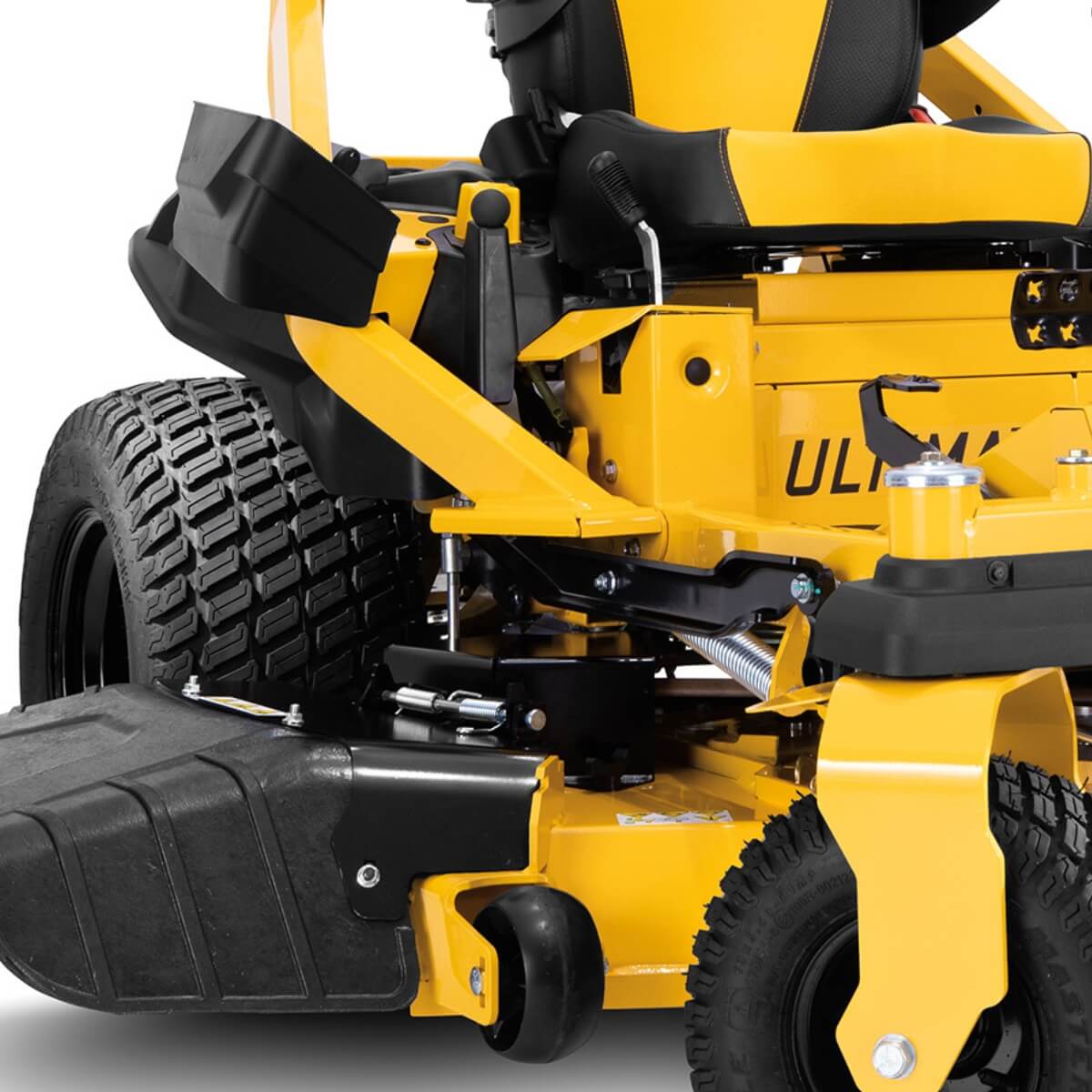

  Built from 10-gauge steel, the wide 60-inch deck greatly reduces mowing time while delivering a clean, consistent cut. With 16 cutting positions and anti-scalp wheels, it adapts to varied terrain with ease.


• Exceptional Terrain Stability
  Rated for slopes up to 20 degrees, the ZTXS5 60 handles challenging ground where traditional zero turns struggle. Heavy-duty tyres and tubular steel rollover protection enhance operator safety.


• Premium Operator Comfort
  A high-back seat with armrests, intuitive steering wheel control, and smooth hydrostatic operation reduce fatigue during long mowing sessions, ensuring a comfortable, controlled experience every time.


• Built for Large-Scale Productivity
  With a massive fuel capacity, high travel speeds, and durable commercial-grade components, the ZTXS5 60 is engineered to maintain large properties efficiently and reliably, season after season.

Engine & Performance
Engine: 25.5HP Kawasaki FX801V
Transmission: Hydro Gear ZT-3200
Forward Speed: Up to 13.7 km/h
Reverse Speed: Up to 5.6 km/h
Slope Capability: Up to 20 degrees
Fuel Capacity: 78.8 litres

Cutting System
Cutting Width: 60 inches (152 cm)
Deck Construction: 10-gauge fabricated steel
Cutting Height Range: 25 mm to 120 mm
Height Positions: 16 levels
Blades: Triple blade system
Blade Engagement: Electric PTO
Anti-Scalp Wheels: Yes

Operational Control
Steering: Synchro-Steer™ four-wheel control
Driving Mode: Zero turn
Tyres (Rear): 22 x 12 inches
Tyres (Front): 13 x 6.5 inches
Mowing in Reverse: Yes

Comfort & Safety
Seat: Premium high-back seat with cushioned armrests

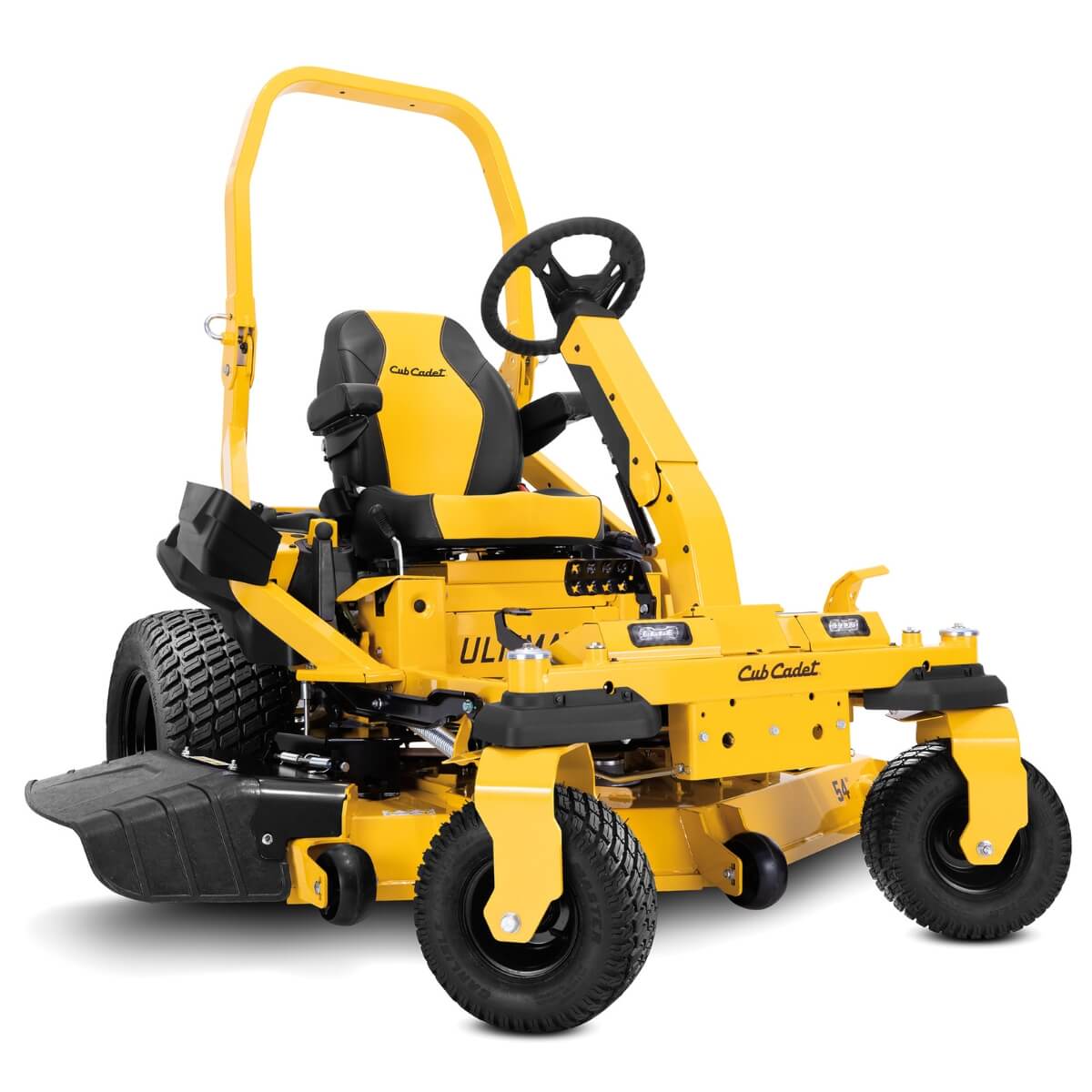

Rollover Protection: Tubular steel ROPS
Operator Presence Control: Included
Tow Hitch: Included

General Specifications
Suitable Block Size: Up to 12 acres
Country of Manufacture: United States

Warranty
Engine Warranty: 3 years domestic / 2 years commercial
Unit Warranty: 3 years domestic / 2 years commercial
